MOUNTING TAPE FOR INDUSTRIAL APPLICATIONS

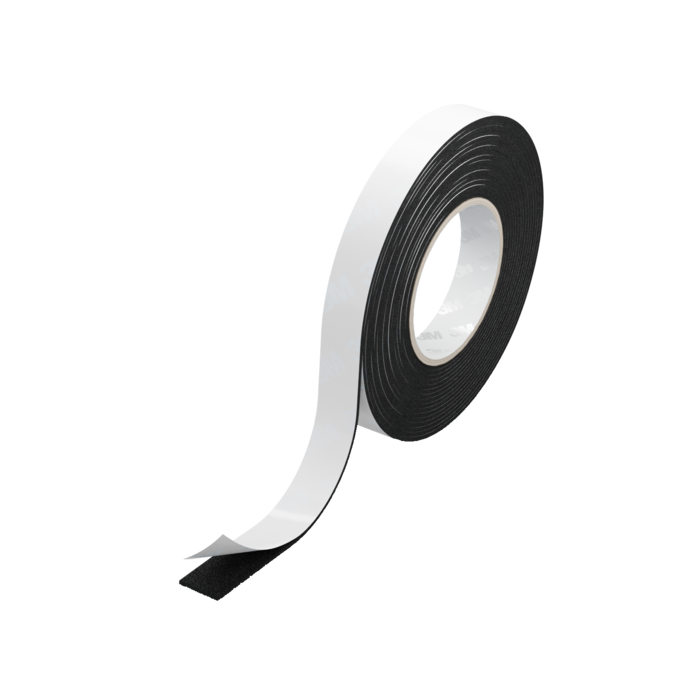

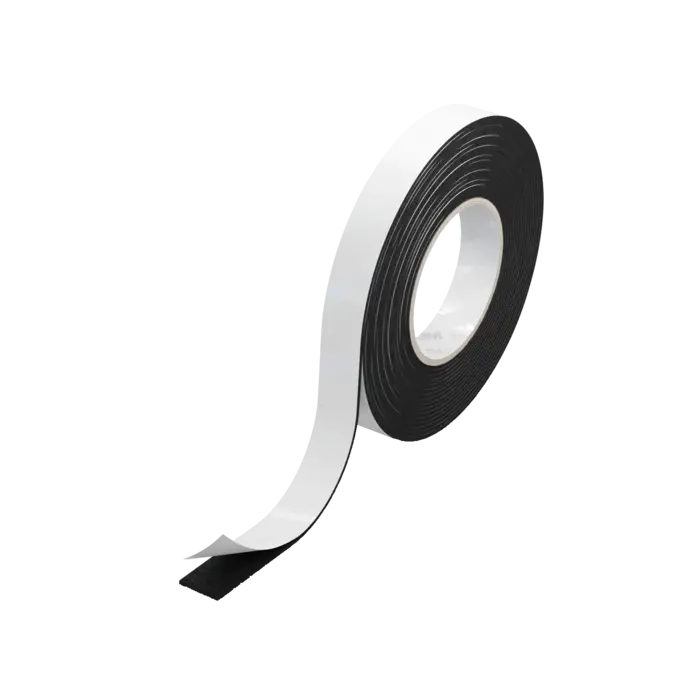

Double-sided mounting tape for industrial assemblies
Double-sided mounting tape joins components without visible fasteners. Choose the product based on the joining surfaces, bonding area, load and application process; Krückemeyer GmbH can match the material and supplied format to your assembly.
01
Mounting tapes by brand

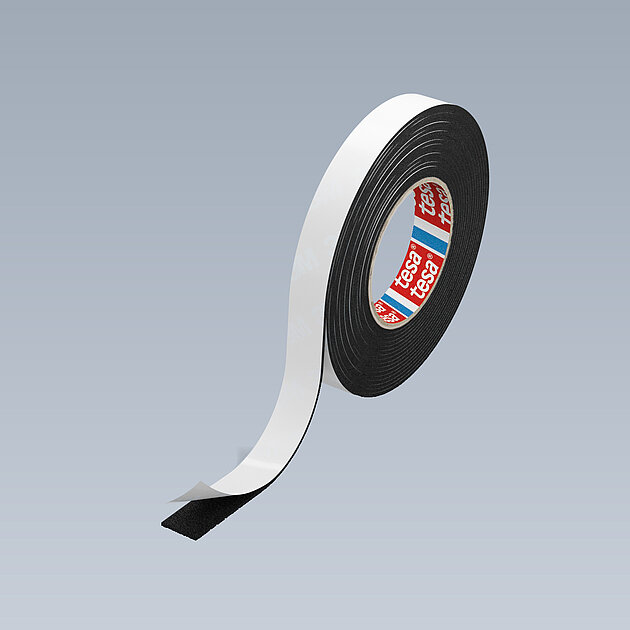

tesa mounting tape

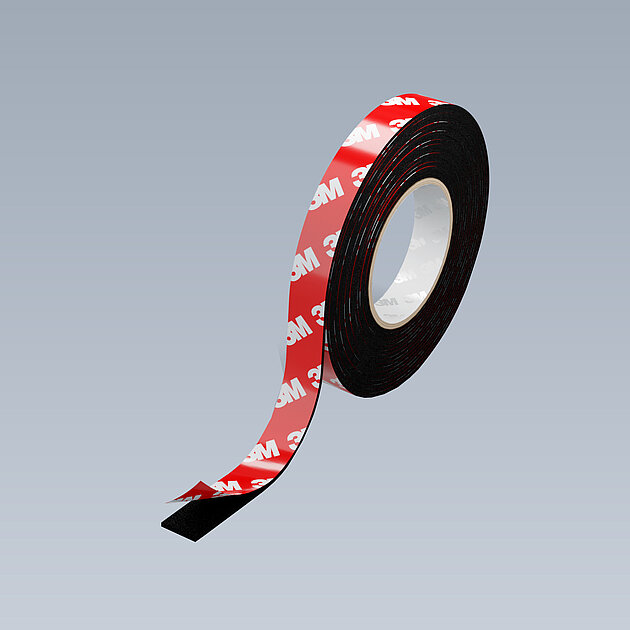

3M mounting tape
02
Selection criteria
Choose mounting tape by component and load
Start with both components: their materials, surface condition and usable bonding area determine contact. Then consider load direction and duration, plus the conditions during application and use. A thin film carrier suits a different joint geometry from a foam carrier that can compensate for slight unevenness. Always check suitability in the actual assembly.
03
MOUNTING TAPE RANGE
Double-sided mounting tapes in the range
The product listing shows double-sided tapes for mounting tasks. Compare each product's specifications with your components and expected load.
Double-sided tape
Iguna CL - Clear acrylic foam - 0.5 mm thickness - 500 mm x 33 m
Double-sided tape
Iguna CL - Clear acrylic foam - 1.0 mm thickness - 500 mm x 33 m
Double-sided tape
Iguna CL - Clear Acrylic Foam - 2.0 mm Thickness - 500 mm x 16.5 m
Double-sided tape
Iguna CL - Clear Acrylic Foam - 3.0 mm Thickness - 500 mm x 5 m
Double-sided tape
Iguna HS - High Standard Acrylic Foam - 0.4 mm Thickness - 900 mm x 33 m
Double-sided tape
Iguna HS - High Standard Acrylic Foam - 0.64 mm Thickness - 900 mm x 33 m
Double-sided tape
Iguna HS - High Standard Acrylic Foam - 0.8 mm Thick - 900 mm x 33 m
Double-sided tape
Iguna HS - High Standard Acrylic Foam - 1.2 mm Thickness - 900 mm x 33 m
Double-sided tape
Iguna HT - High Temperature Acrylic Foam - 0.8 mm Thickness - 900 mm x 33 m
Double-sided tape
Iguna HT - High Temperature Acrylic Foam - 1.2 mm Thickness - 900 mm x 33 m
Double-sided tape
Iguna LS - Low Surface Acrylic Foam - 0.64 mm Thickness - 900 mm x 33 m
Double-sided tape
Iguna LS - Low Surface Acrylic Foam - 0.8 mm Thickness - 900 mm x 66 m
Double-sided tape
Iguna LS - Low Surface Acrylic Foam - 1.1 mm Thickness - 900 mm x 33 m
3M VHB
3M VHB Klebeband 4915, Transparent, 63 mm x 102 mm, 1.5 mm, Stanzteil
No products match this combination.
No products match all of the selected filter criteria.
04
CHOOSING MOUNTING TAPE
Which version suits your joint?
A tape name or peel adhesion value alone is not enough for a reliable choice. Describe the substrate and component, available bonding area, load direction, and temperatures and moisture in service. On uneven surfaces, a suitable foam carrier may support contact; a film tape may suit a thin joint. The specific product properties must fit the finished assembly.
Krückemeyer GmbH can convert suitable stock material into the required roll widths or die-cut parts. Tell us about your components, dimensions and application step in the enquiry form so we can assess suitability for your use.
05
MOUNTING TAPE DATA SHEET
06
MOUNTING QUESTIONS
What determines whether a double-sided mounting tape is suitable?
The key factors are both components, the area the adhesive can actually contact, the surface condition and the load on the joint. A mounting tape can perform well on a smooth test substrate yet bond differently to another component. Load direction and duration, along with temperature and moisture in service, also matter. Describe the finished assembly and check the selected product on the actual components before use.
When is a foam carrier useful for mounting?
A suitable foam carrier can compensate for slight unevenness between components and help establish contact across the bonding area. That does not establish suitability for every substrate or load. The range also includes thin mounting tapes with film carriers for different joint geometries and construction needs. Surface condition, available bonding area and service load determine the choice. Compare the specifications of the particular product before selecting it.
Why does load direction matter when selecting adhesive tape?
How the components are arranged determines how the joint is stressed. Consider the expected direction and duration of the force: a load along the bonding area must be assessed differently from lifting at an edge. Product values such as peel adhesion or shear strength reflect defined test conditions and do not replace an assessment of your assembly. Provide the joint geometry and load case when requesting advice.
How can mounting tape be converted for a production process?
Krückemeyer GmbH can cut suitable double-sided tape to application-specific roll widths and produce die-cut parts. The useful format depends on component geometry, how the tape is applied and the required supplied form. Specify the dimensions, bonding area position and handling in your production process. Material, geometry and process need to be assessed together; conversion alone does not change the documented properties of the tape.
07
Request advice
Describe the components, surfaces, bonding area, load direction and required supplied format. This lets us assess the mounting tape and potential conversion for your application.
Discuss mounting tape for your components
Send us the requirements for your joint and application process. Krückemeyer GmbH can help you select the tape and suitable cut format.
